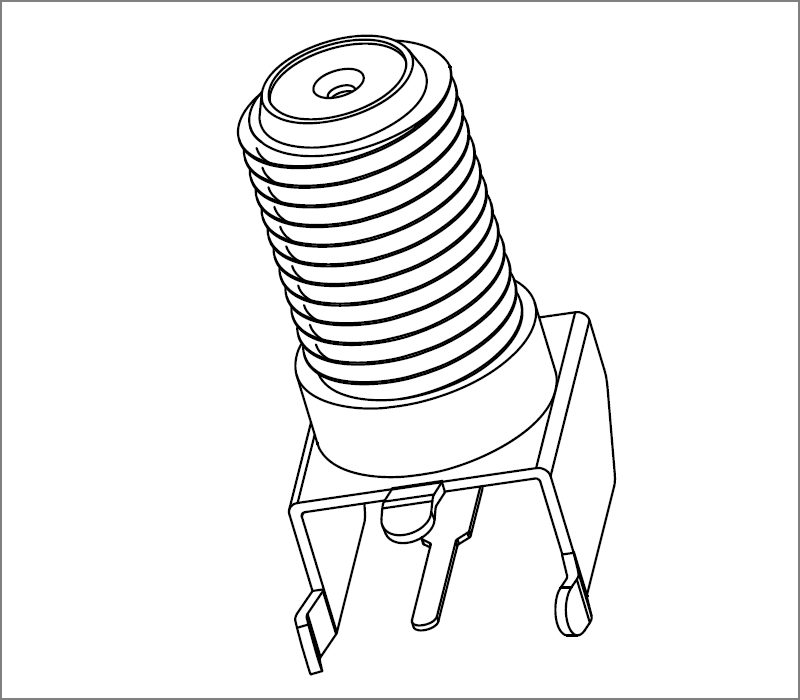

RF COAXIAL CONNECTOR,SMA,MALE P/N:RECC-SMA-KWH-001

Product model: RECC-SMA-KWH-001

 VOLTAGE RATING:50 VAC MAX

● CURRENT RATING:0.5A AMP MAX

● CONTACT RESISTANCE:

    OUTSIDE 5.0 mΩ MAX

    INSIDE 2.5 mΩ MAX

● CHARACTERISTIC RESISTANCE:50 MAX.

INSULATION RESISTANCE:1000 mΩ MIN

● DIELECTRIC WITHSTAND VOLTAGE:750V

● VSWR:1.07+0.04 √f(Ghz)

● OPERATING LIFE:500 CYCLES MIN

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component

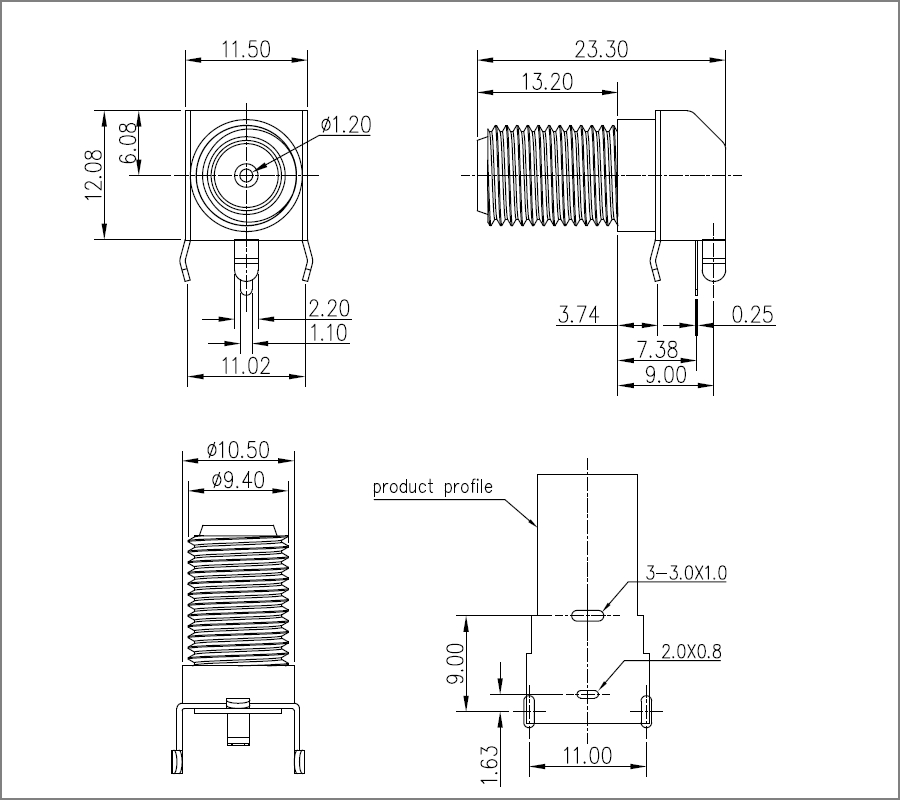

PRODUCT SPECIFICATIONS
