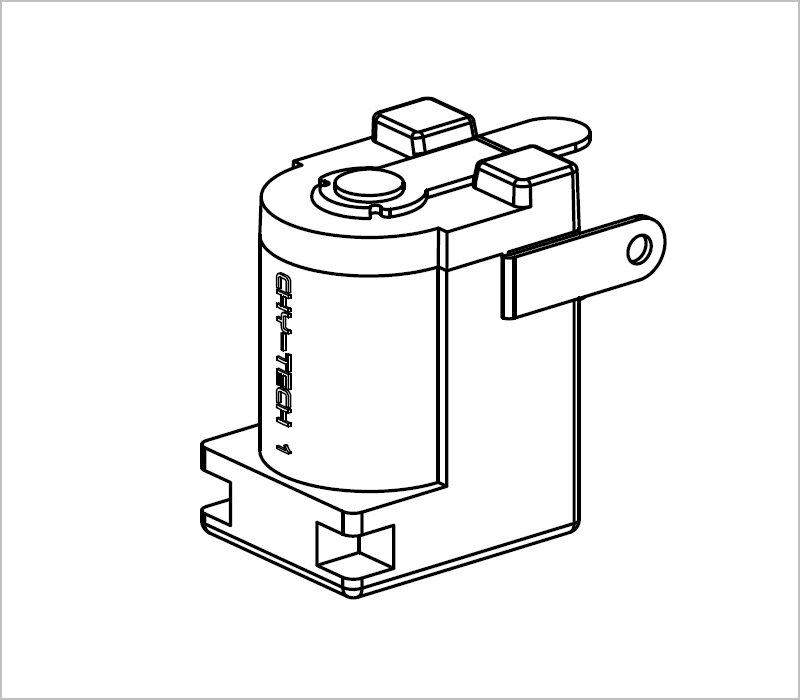

DC Power Jack, 2.0*5.8mm, P/N:DC-512C

Product model: DC-512C

● Contact Rating:4A/12VDC; 3A/15VDC

● Contact Resistance:100mΩ(MAX)500VDC

● Dielectric Withstand Voltage:500VAC/0.5mA-1 Minute

● Electrical Life:5000 Cycles min.

● Housing Color:Black or by request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

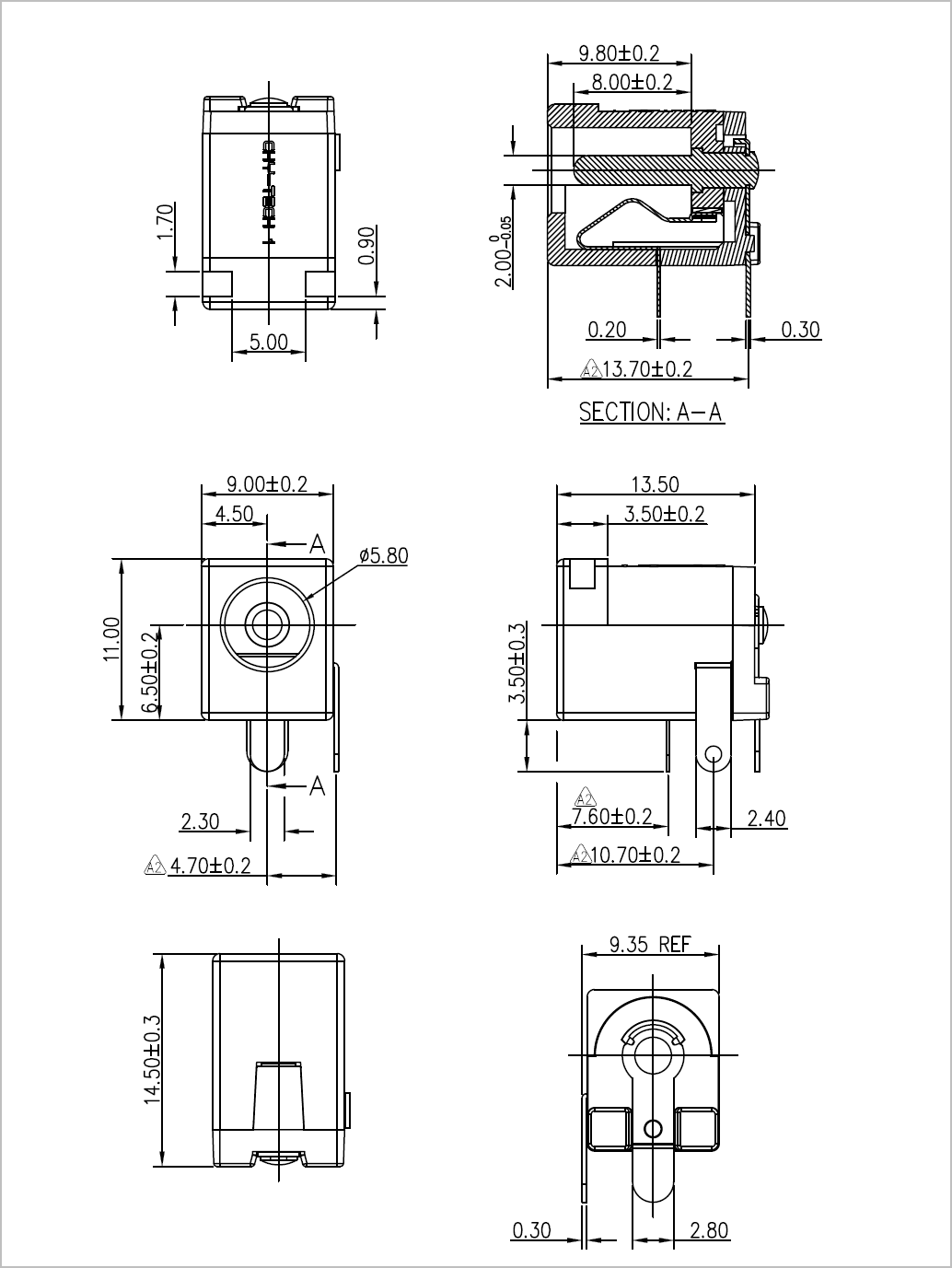

DC-512C 尺寸图.png
