● Port Matrix Configuration：2*2
● Contact Rating：1A/48VDC~
● Shielding：Yes
● LED Color (Left) ：Green
● LED Color (Right) ：Orange
● Termination Method to PCB： Through Hole - Solder
● Transmission rate：A~C Port: 10/100/1000 BASE-T，D Port: 2.5G Base-T
● Housing Material：High Temperature Thermoplastic UL94V0
● Housing Color：Black or by Request
● EU RoHS Directive 2011/65/EU：RoHS and Halogen-Free Component

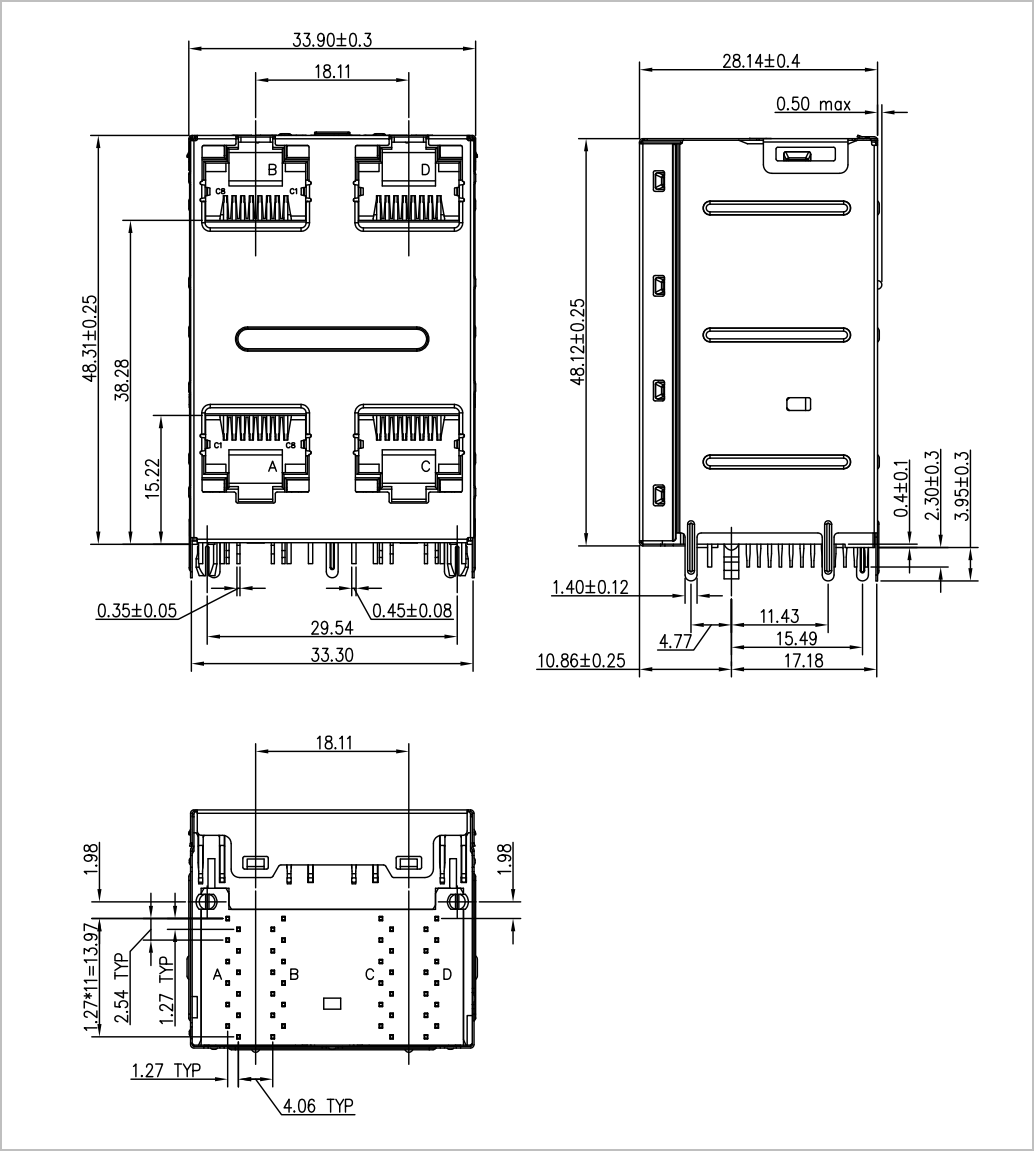

MECHANICAL DIMENSION:

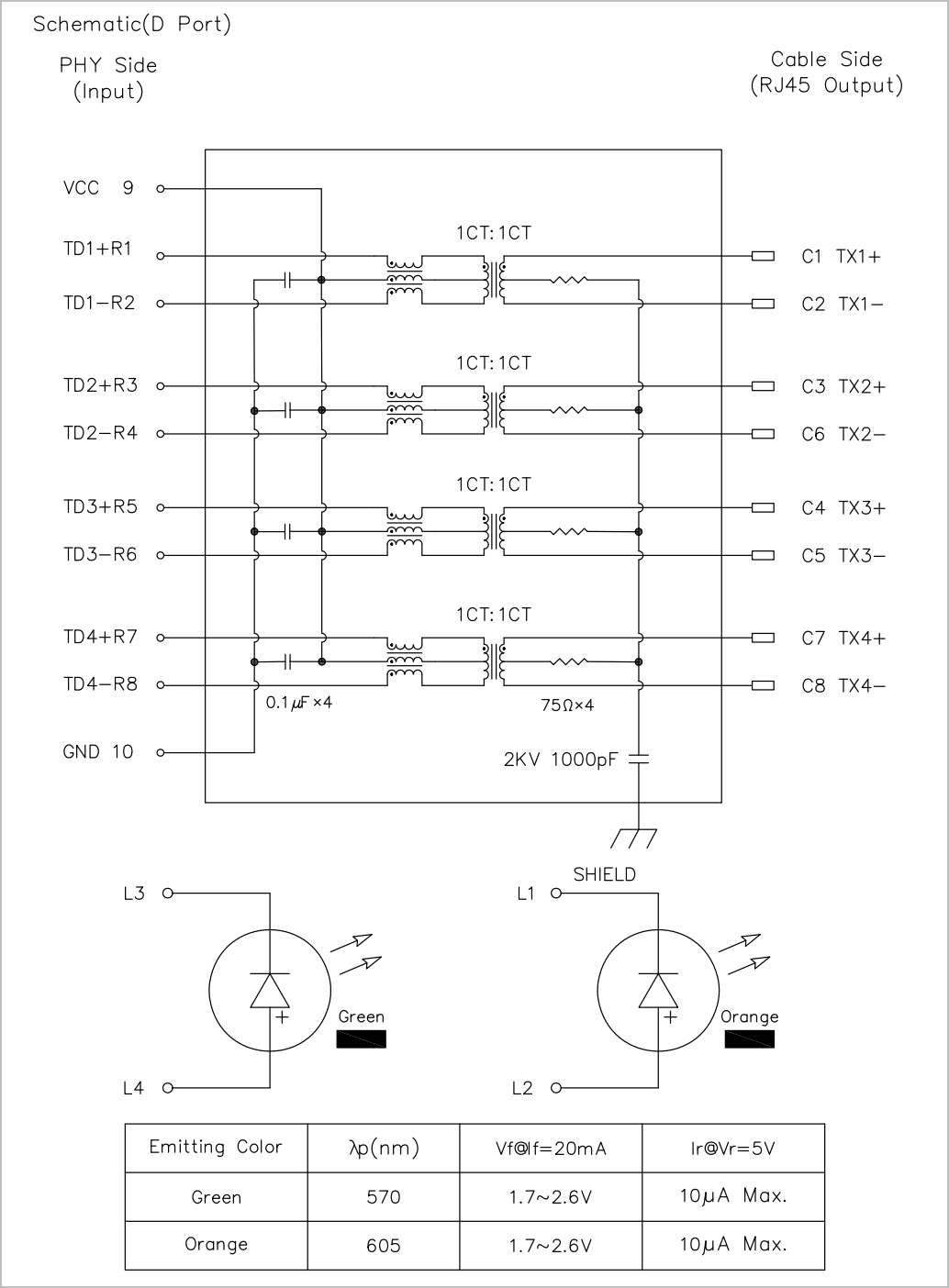

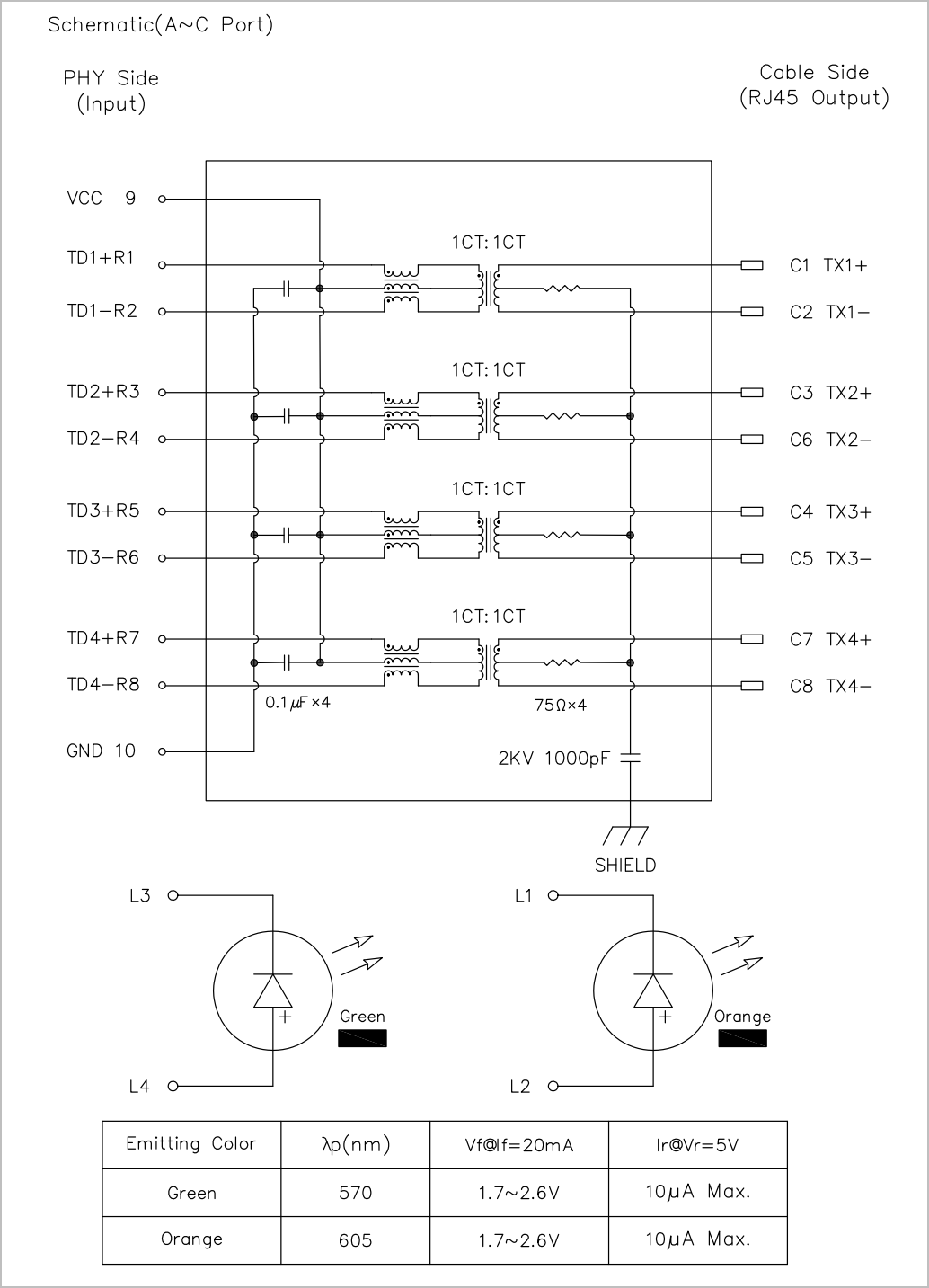

ELECTRICAL SCHEMATIC:
