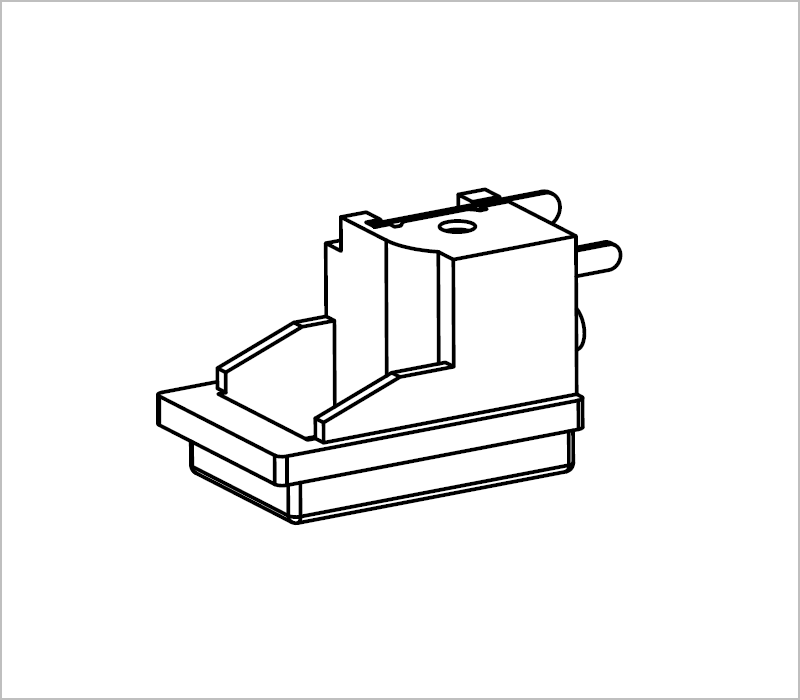

DC Power Jack, 3.0*6.3mm, P/N:DC-513FD

Product model: DC-513FD

● Contact Rating:1.6A/30VDC; 4A/12VDC

● Jack Diameter:φ6.3 mm

● Center Pin:φ3.0 mm

● Electrical Life:5000 Cycles min.

● Housing Material:High-Temperature Thermoplastic

● Housing Color:Black or by request

● Packaging Type:Blister Box

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

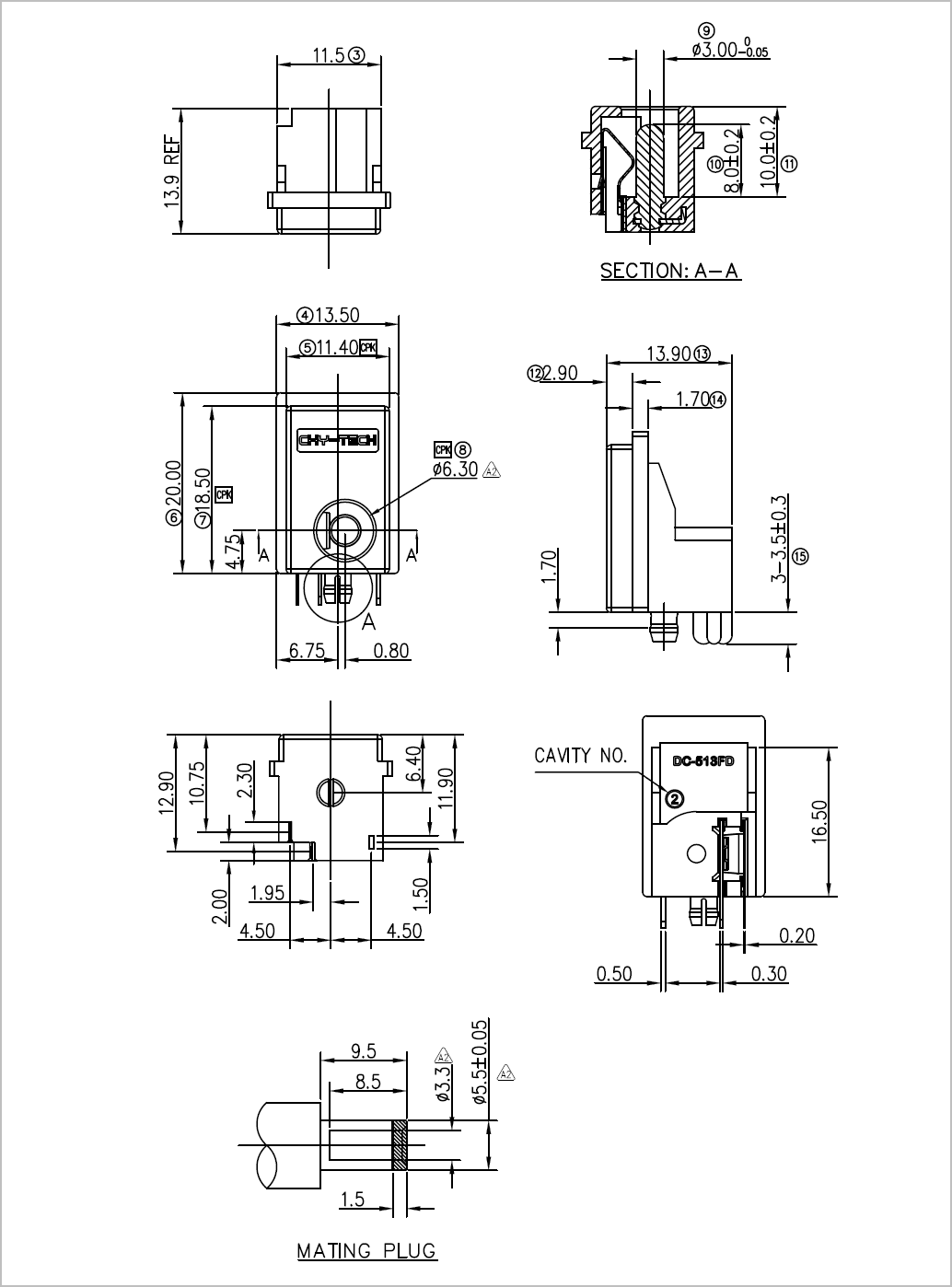

DC-513FD 尺寸图.png
