RJ45 ICM 1G+USB 3.0*2, Shield, LED(G/O), Single Port, P/N:RUUA-DH11-4201

Product model: RUUA-DH11-4201

● Port Matrix Configuration1*1

● Shielding:Yes

● LED Color (Top Left) :Green

● LED Color (Top Right) :Orange

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

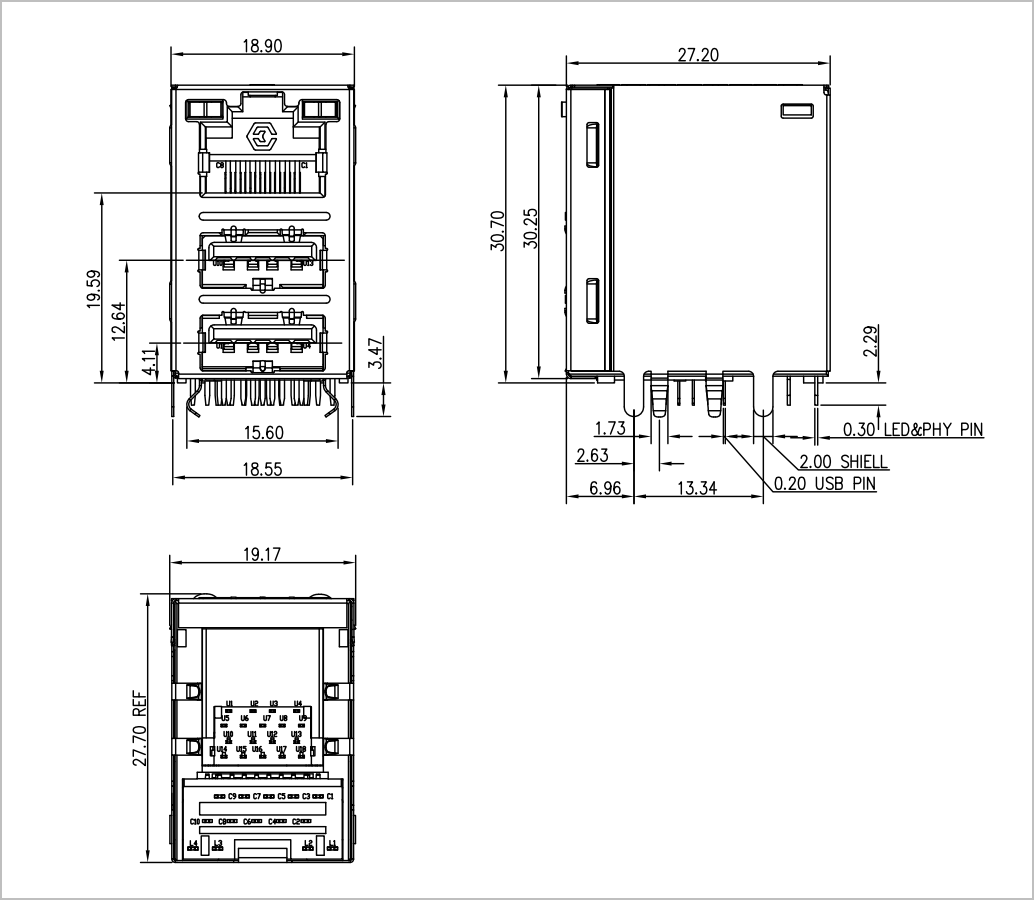

MECHANICAL DIMENSION

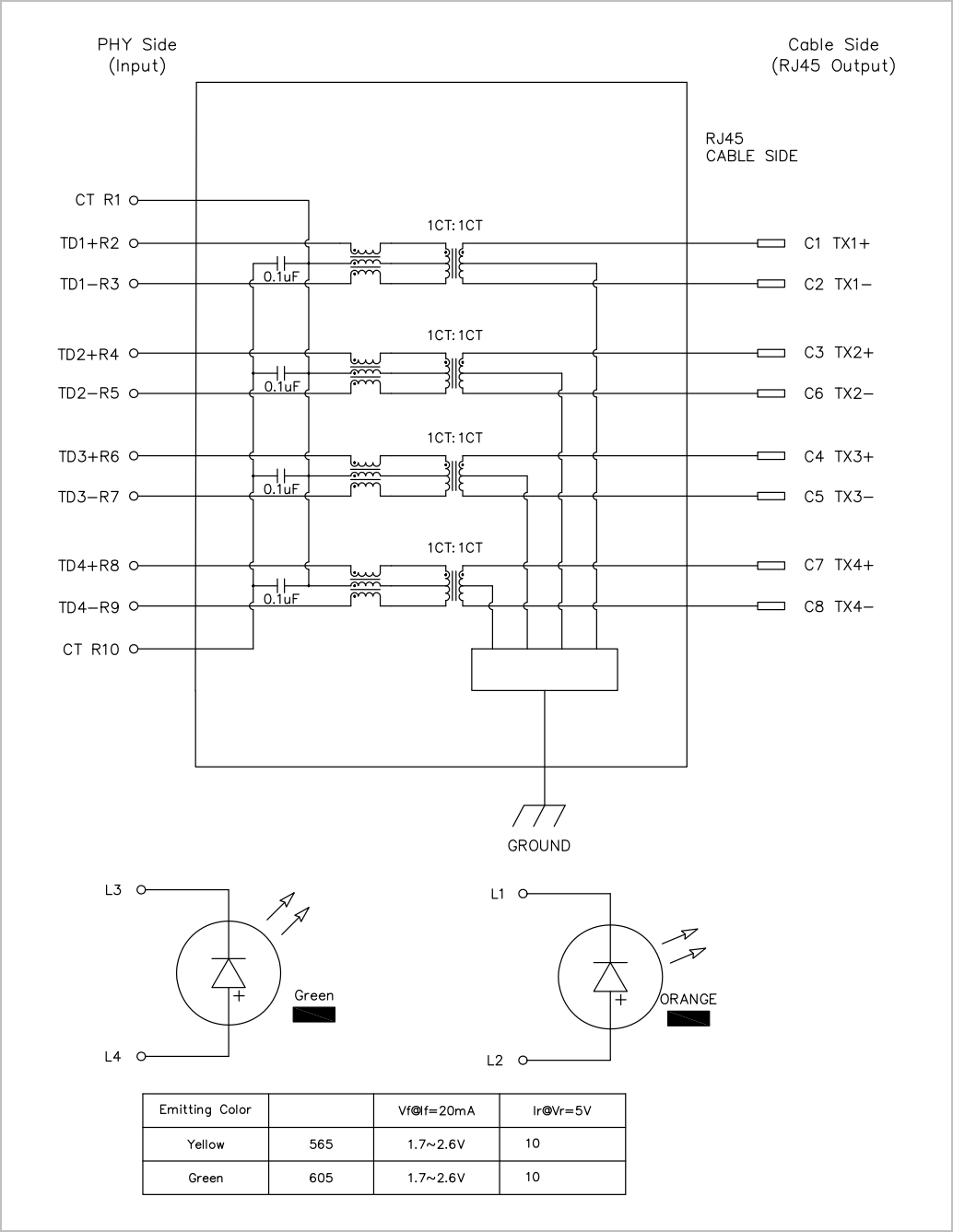

ELECTRICAL SCHEMATIC

RECOMMEND
