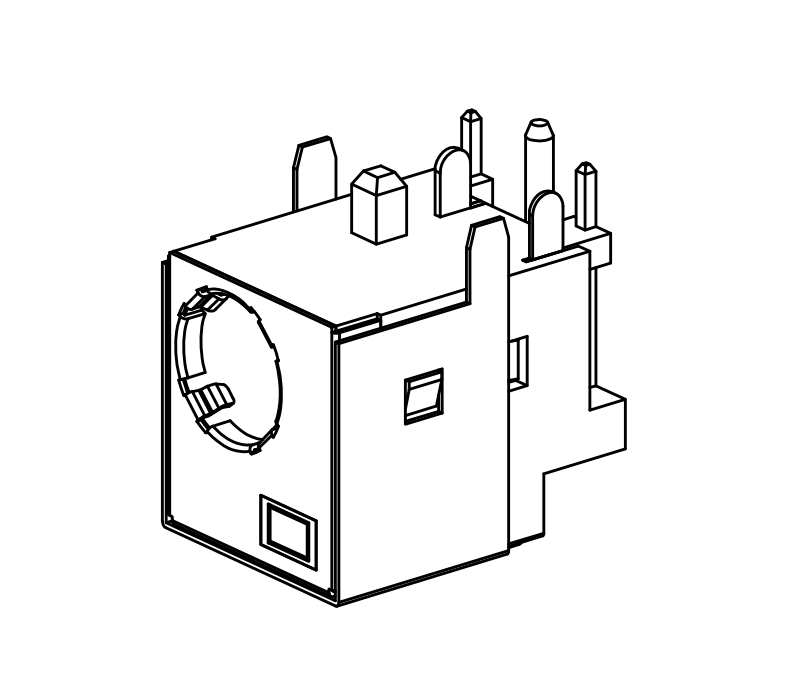

DC Power Connector with Led Type, 2.0*6.0mm, P/N:DL-01-05DBB

Product model: DL-01-05DBB

● Contact Rating:5A/24VDC (max)

● Contact Resistance:30mΩ(max)500VDC

● Dielectric Withstand Voltage:500VAC/0.5mA-1 Minute

● Electrical Life:5000 Cycles min.

● Housing Color:Black or by request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component

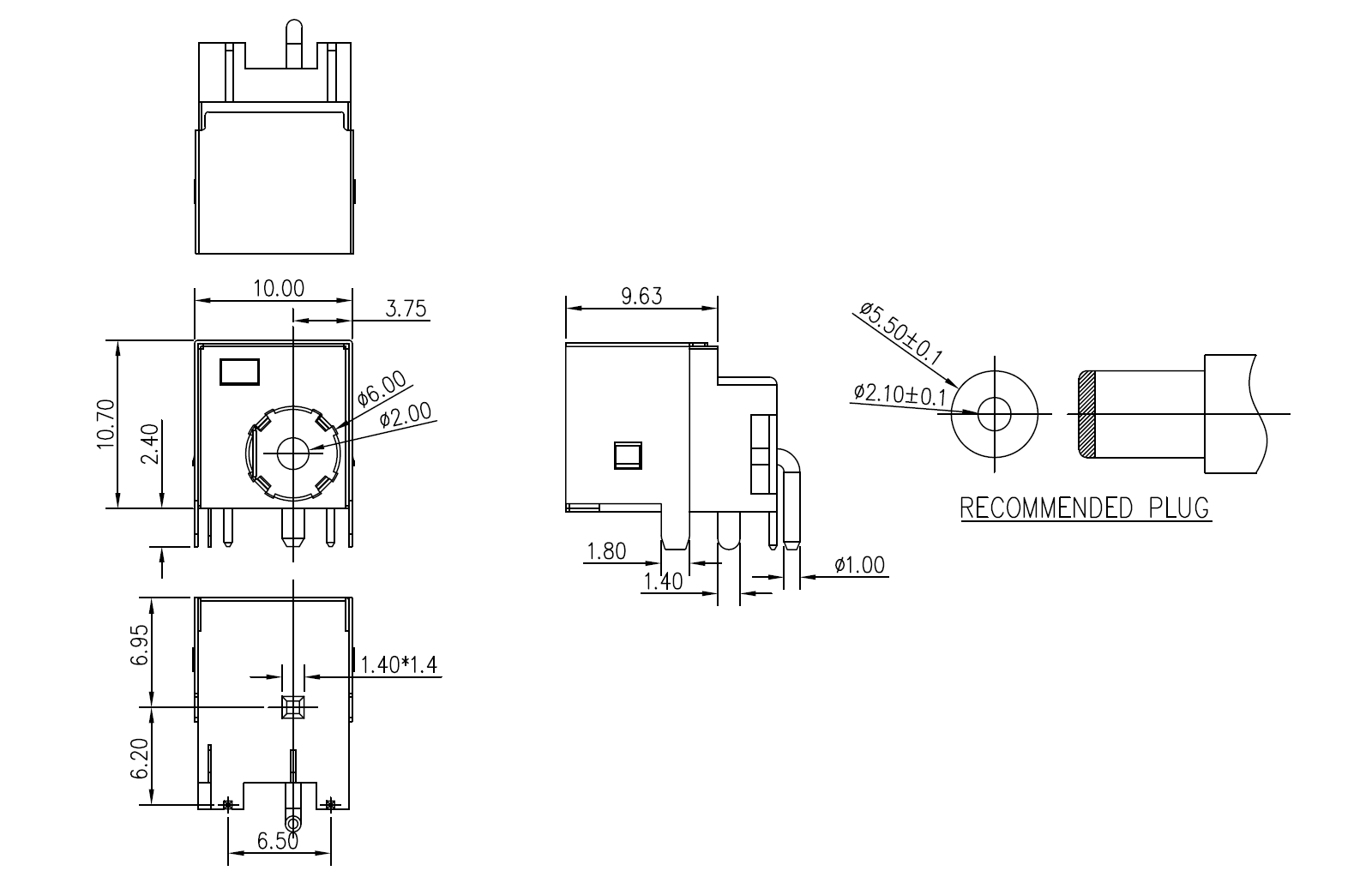

PRODUCT SPECIFICATIONS
