10/100/1000/2.5G/5G BASE-T Dual Port SMD Transformer Module,P/N:NSD1-4801

● OCL: 250 uH Min, @100KHz,0.1V, With 8mA DC Bias.

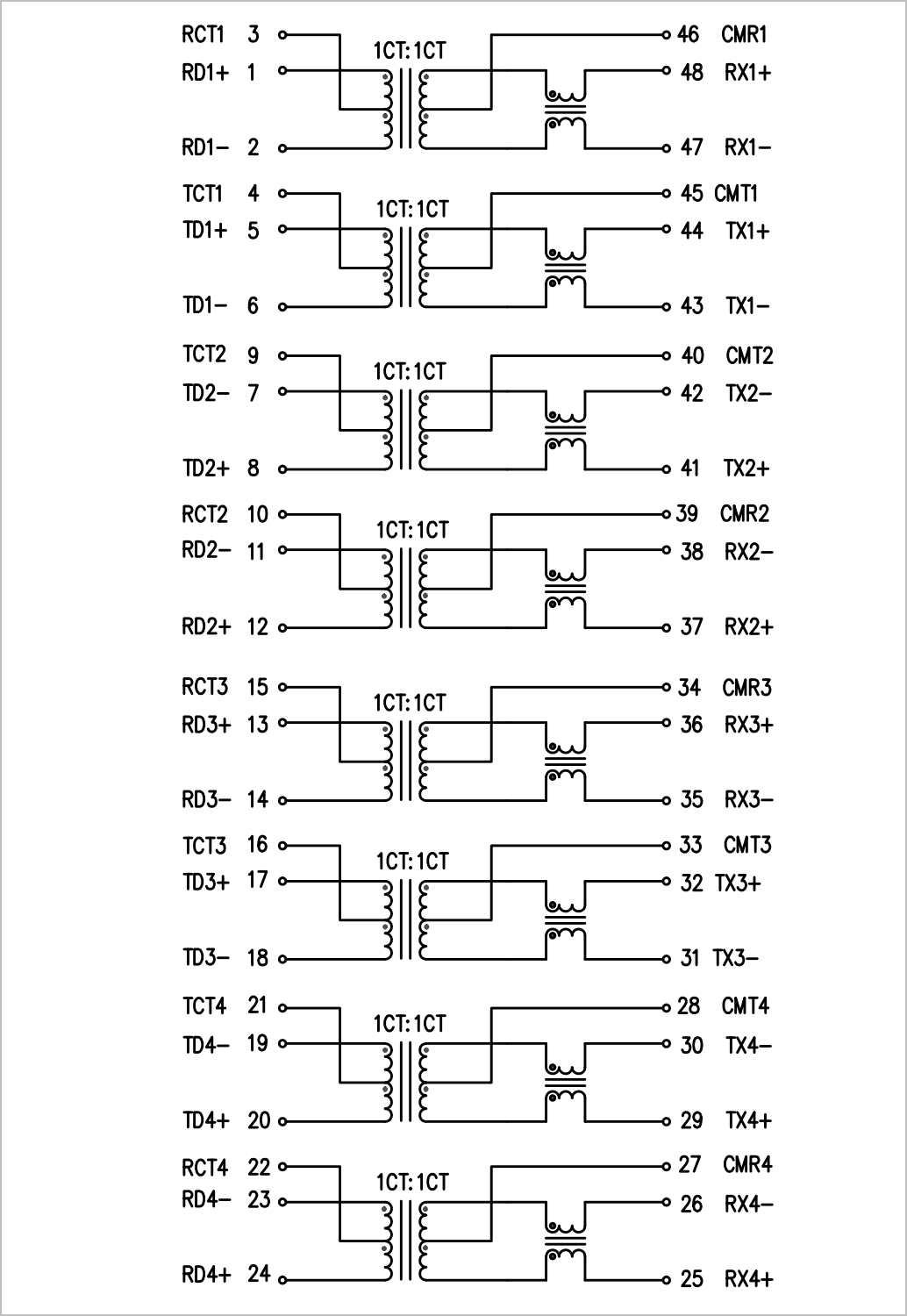

● Turns Ratio (±3%): 1CT:1CT

● Instertion Loss: -1.0 dB Max  (1-100MHz);  -2.0 dB Max  (100.1-200MHz)

● Return Loss (@Load 100Ω): -18 dB Min (30MHz); -11 dB Min (125MHz); -10 dB Min (150MHz); -9 dB Min (250MHz)

● HI-POT : 1500 Vrms

● Designed To Meet IEEE  802.3bz & ANSI X 3.263  Standards.
