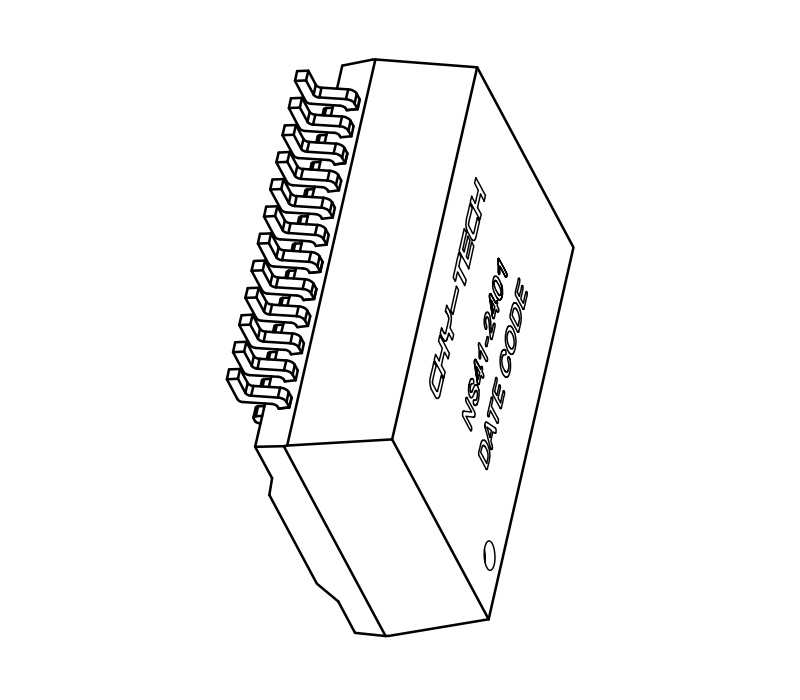

10G BASE-T Single Port SMD Transformer Module, P/N:NS41-2401

● OCL: 100 uH Min, @100KHz,0.1V

● Turns Ratio (±3%): 1CT:1CT

● Instertion Loss: -1.0 dB Max  (1-300MHz);  -1.50 dB Max  (400MHz); -2.0 dB Max  (500MHz)

● Return Loss (@Load 100Ω): -18 dB Min (1-100MHz); -12 dB Min (200-300MHz); -11 dB Min (400MHz); -10 dB Min (500MHz)

● HI-POT : 1500 Vrms

● Designed To Meet IEEE  802.3an & ANSI X 3.263  Standards.
