DC Power Connector With Rocker Switch,2.5*6.3mm, P/N:SD-01-06FC

Product model: SD-01-06FC

● Contact Rating:7A/20VDC

● Contact Resistance:30mΩ(MAX)500VDC

● Dielectric Withstand Voltage:500VAC/0.5mA-1 Minute

● Jack Diameter:φ6.3 mm

● Center Pin:φ2.5 mm

● Housing Material:High-Temperature Thermoplastic

● Housing Color:Black or by request

● Packaging Type:Blister Box

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component

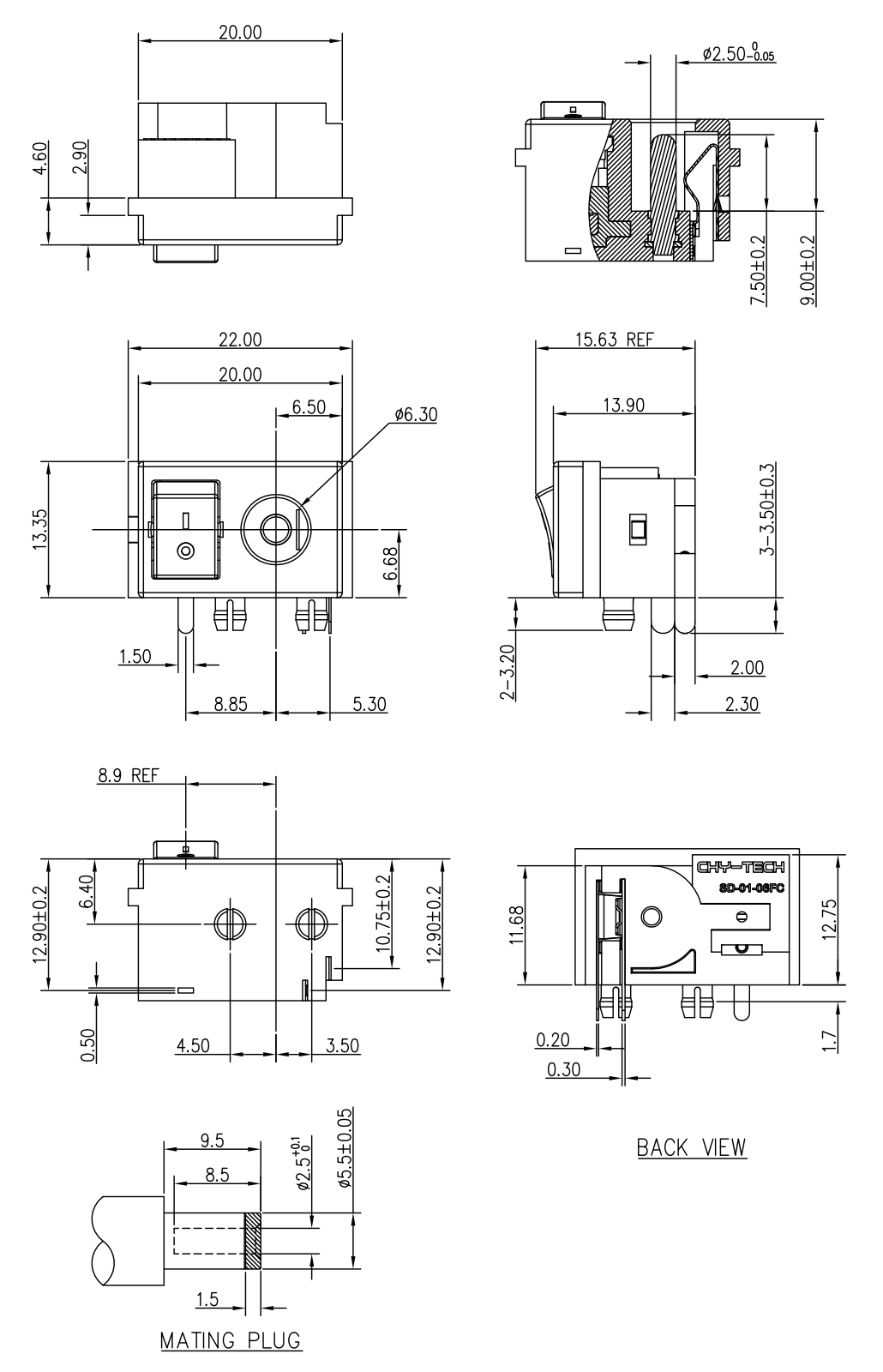

PRODUCT SPECIFICATIONS
