● Port Matrix Configuration：1*1
● Contact Rating：1A/48V~
● Termination Method to PCB： Through Hole - Solder
● Transmission rate：1G BASE-T
● Housing Material：High Temperature Thermoplastic UL94V0
● Housing Color：Yellow 114C or by Request
● EU RoHS Directive 2011/65/EU：RoHS and Halogen-Free Component

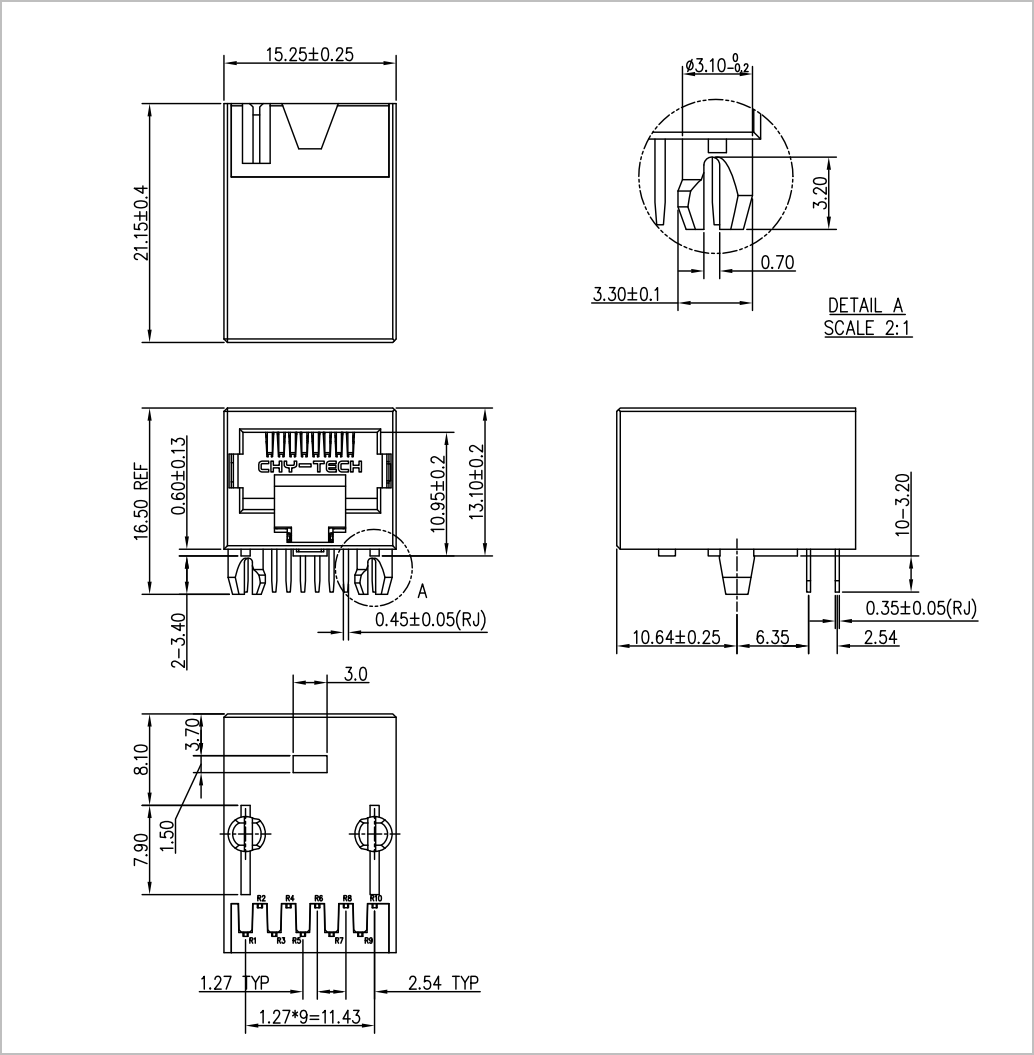

MECHANICAL DIMENSION：

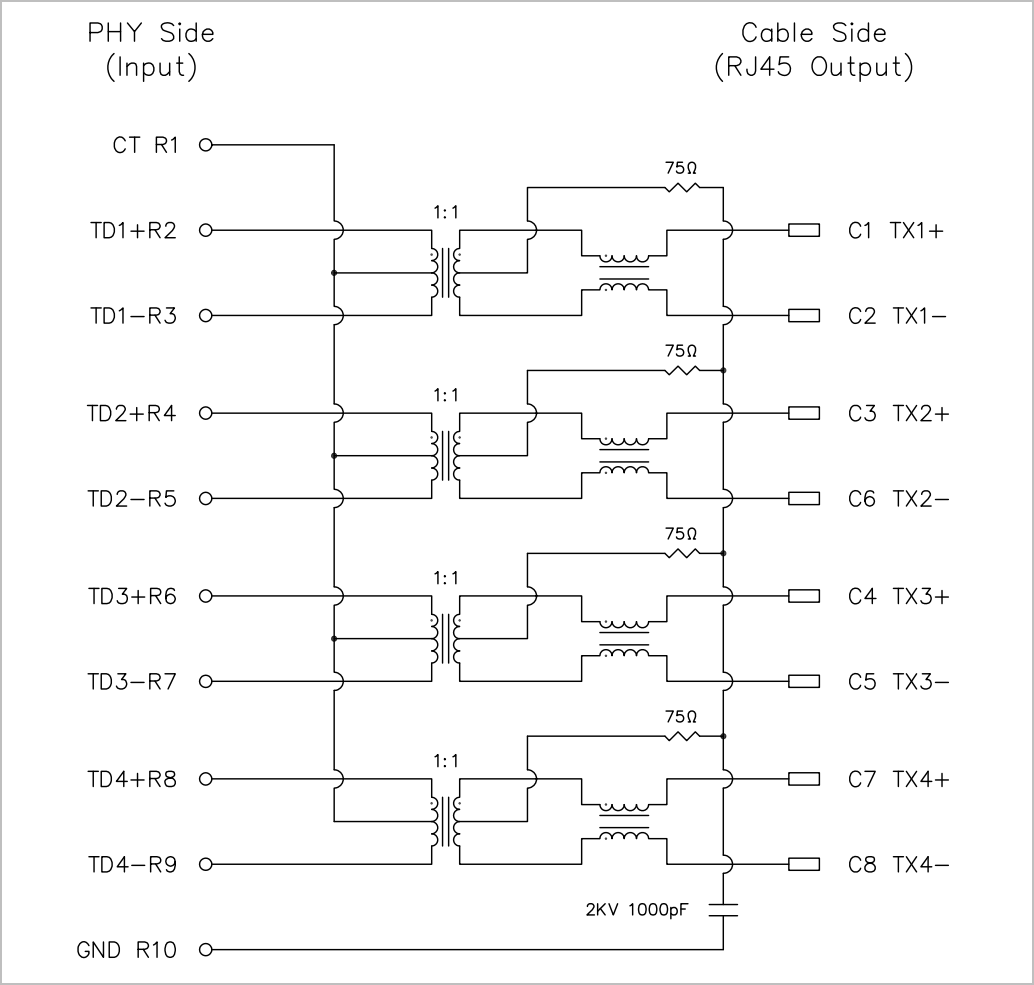

ELECTRICAL SCHEMATIC：
