RJ45+Transformer 1G,1*4,Tab Down, Shield, LED(G/O), P/N:RCDC-DH11-4201

Product model: RCDC-DH11-4201

● Port Matrix Configuration1*4

● Contact Rating:1A/48V~

● Shielding:Yes

● LED Color (Bottom Left) :Green

● LED Color (Bottom Right) :Orange

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Yellow 114C or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

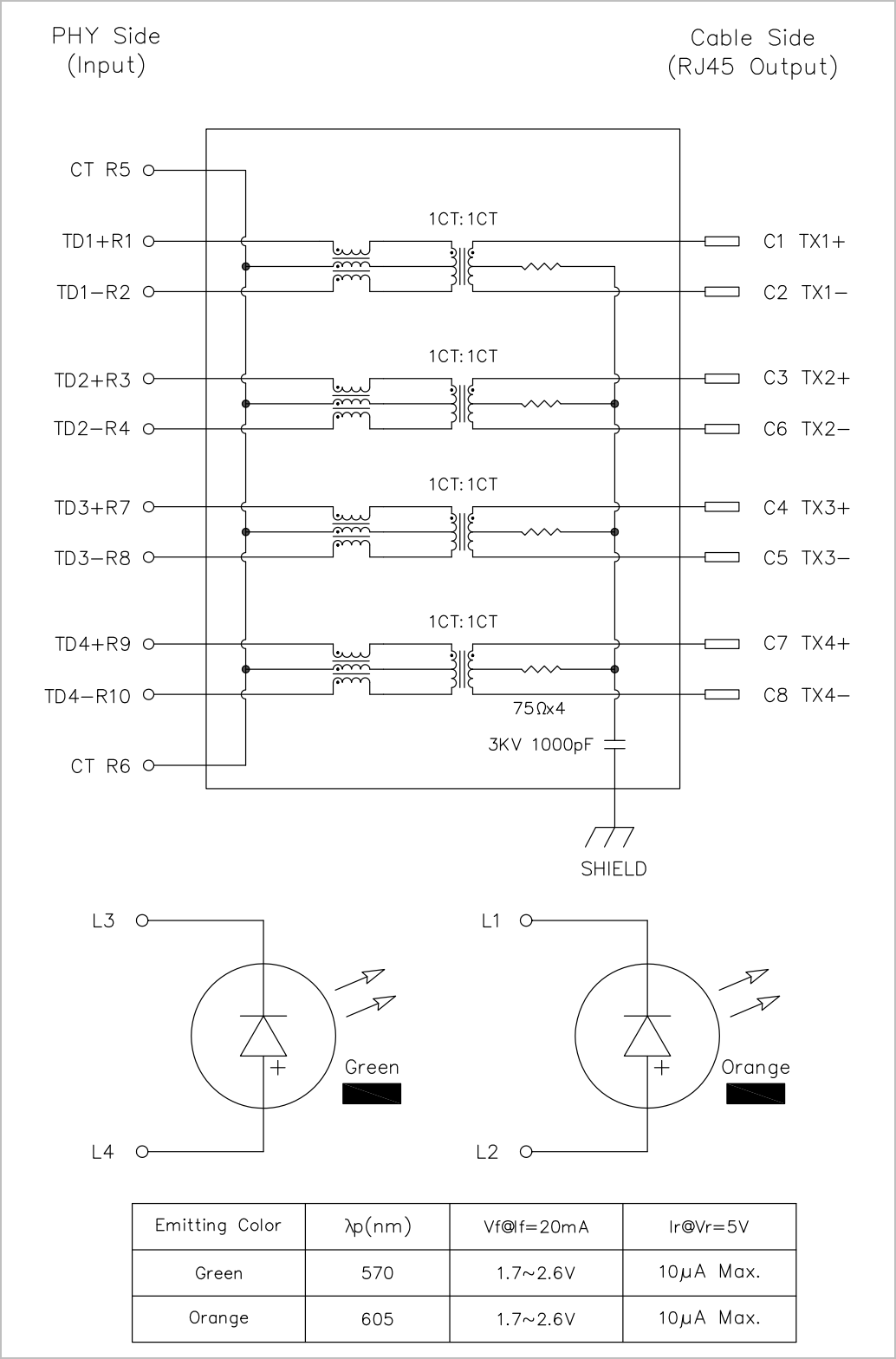

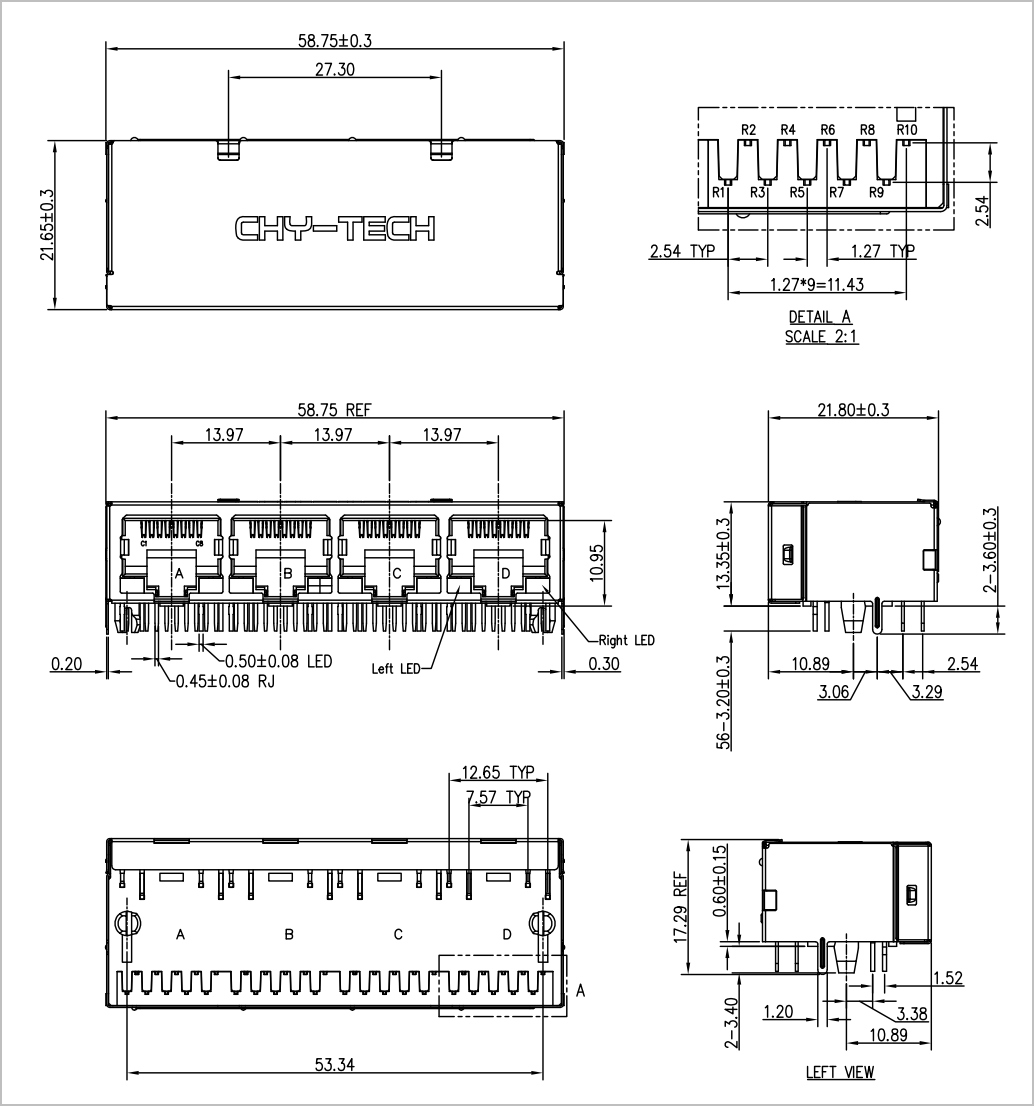

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
