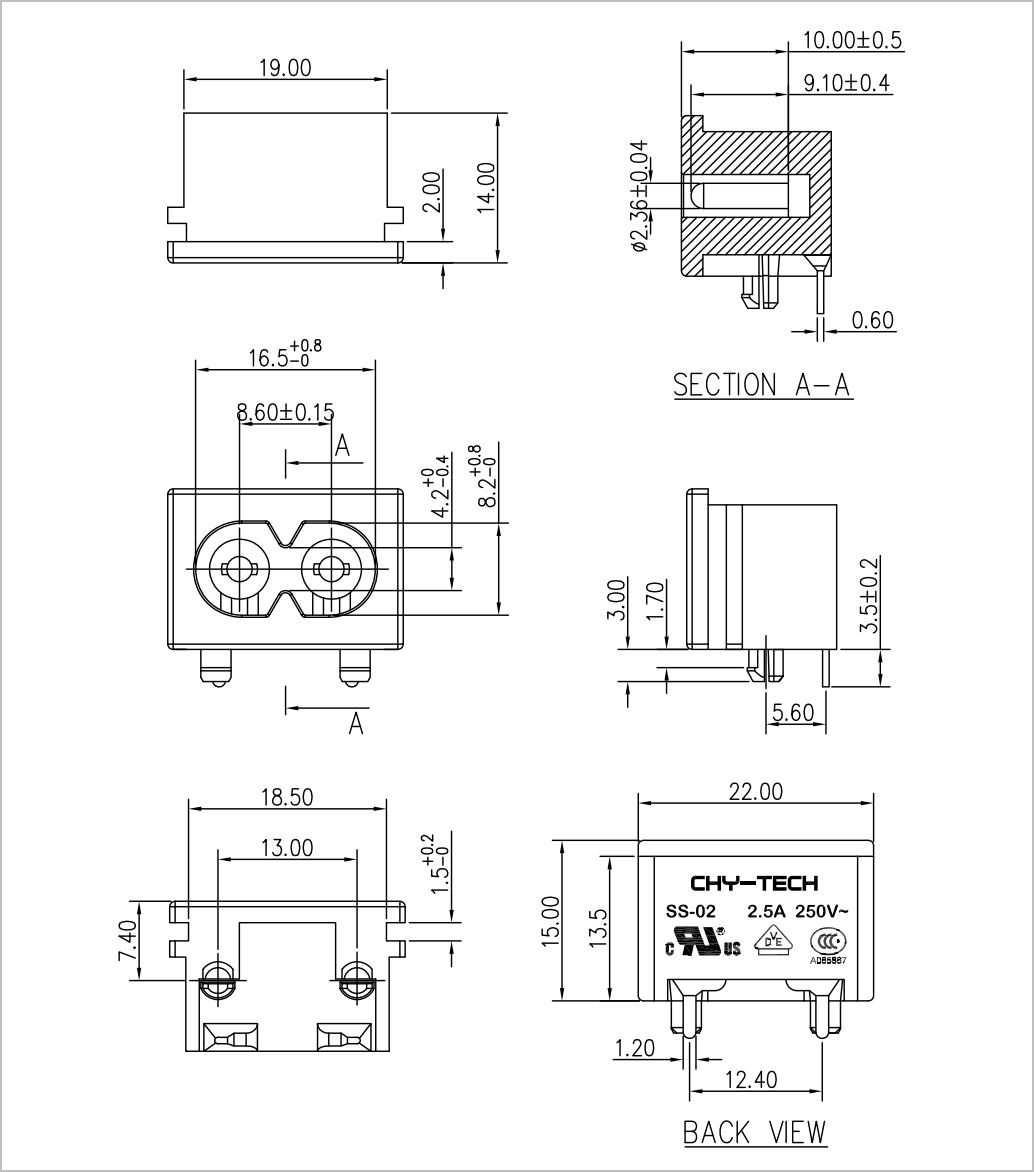

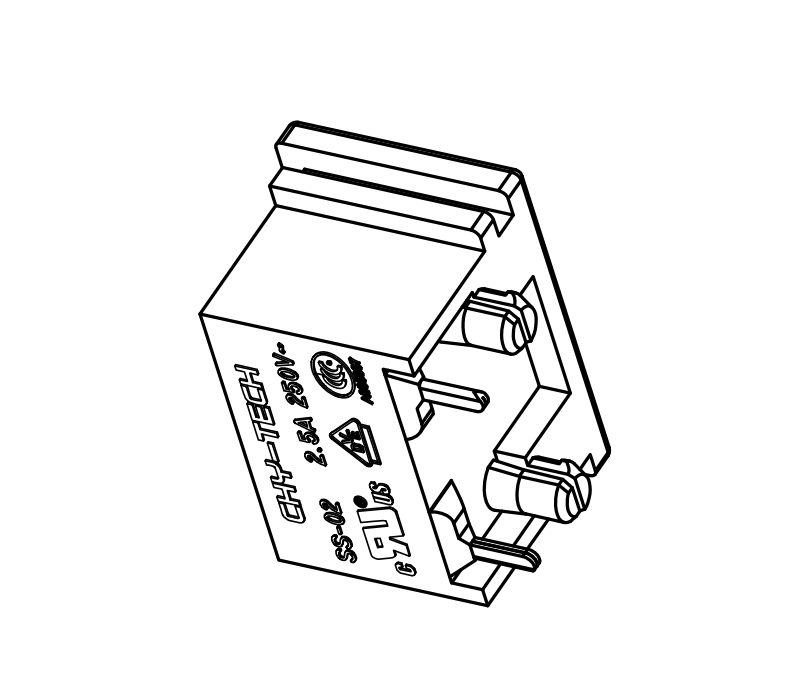

AC Power Socket, Male, IEC60320 C8, SS-02 Series, P/N:SS-02-02B-DNH

Product model: SS-02-02B-DNH

● Contact Rating:2.5A/250V~ ,  7A/125V

● Contact Resistance:30mΩ(MAX)500VDC

● Dielectric Withstand Voltage:2000VAC-1 MINUTE

● Electrical Life:5000 Cycles min.

● Housing Material:PC

● Housing Color:Black or by request

● Packaging Type:Blister Box

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component

● Designed To Meet IEC60320-1 C8 Standards.


PRODUCT SPECIFICATIONS
