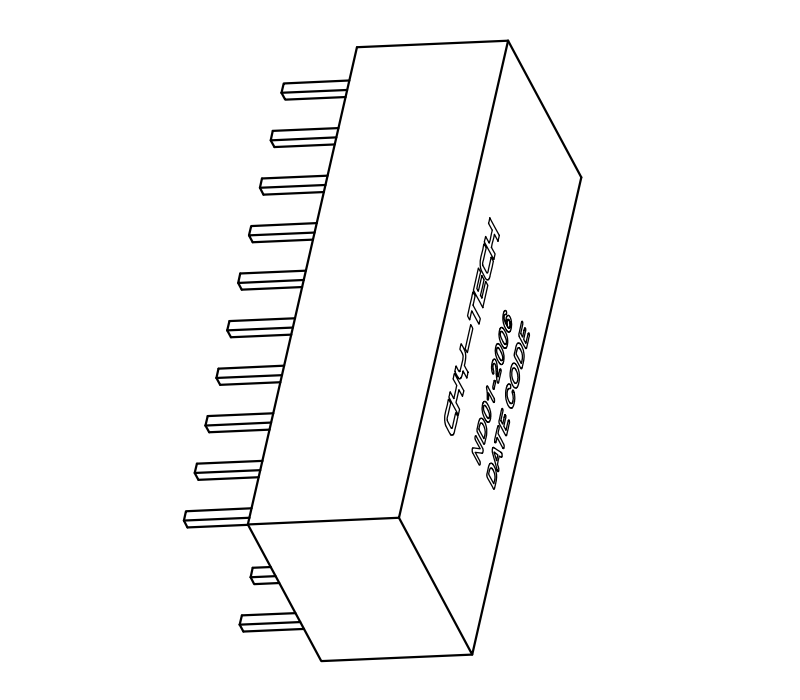

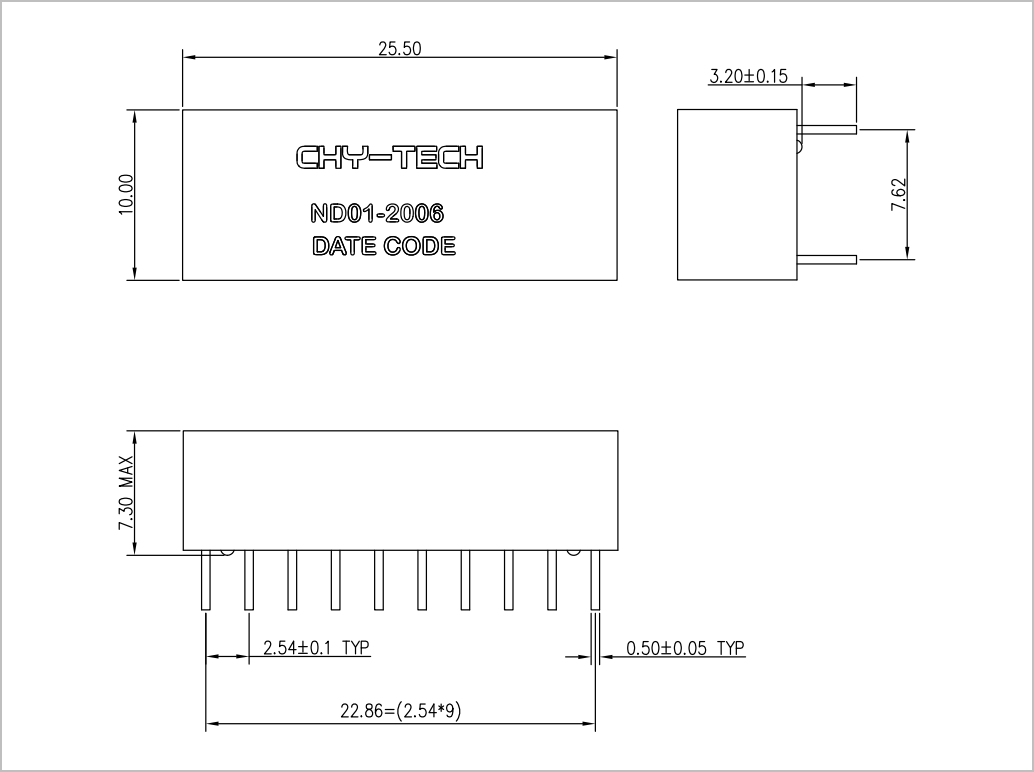

10/100 BASE-T Dual Port Dip Transformer Module, P/N:ND01-2006

● OCL: 350 uH Min, @100KHz,0.1V

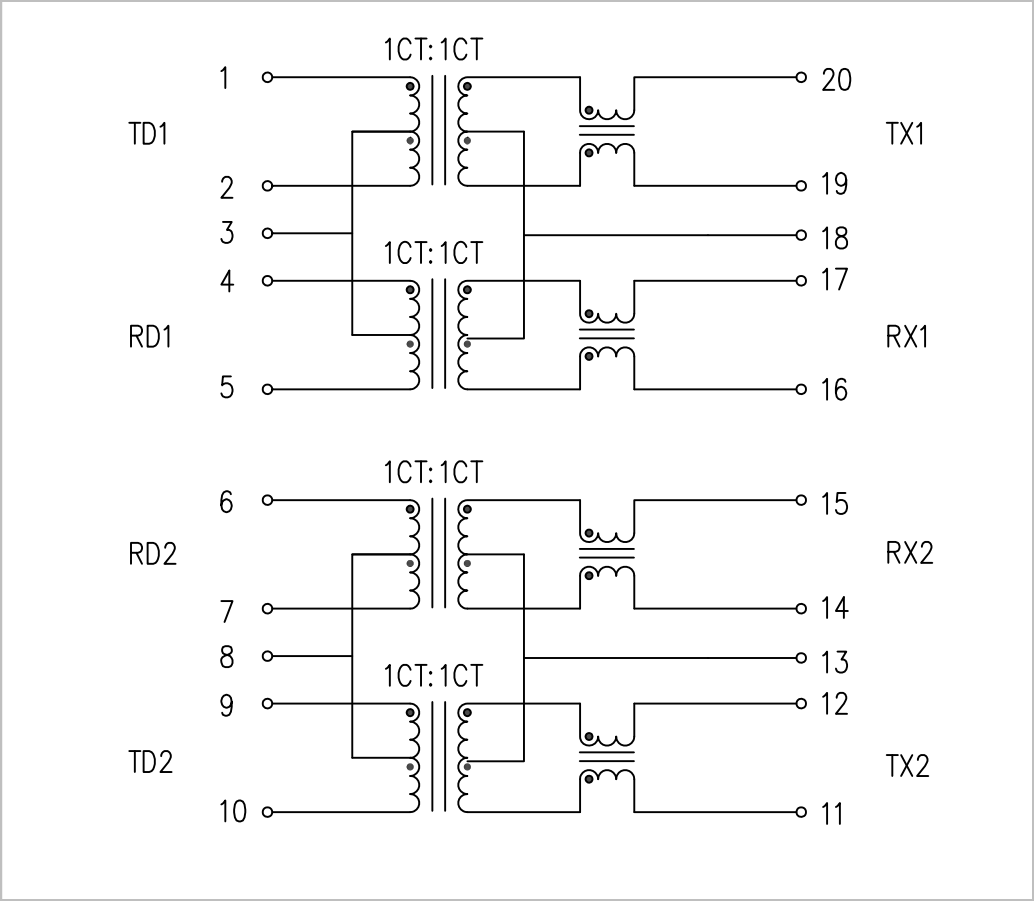

● Turns Ratio (±5%): 1CT:1CT

● Instertion Loss (0.5-100MHz): -1.1 dB Max

● Return Loss: -18 dB Min (0.5-30MHz)； -18+20*log(f/30) dB Min (30.1-60MHz)；-12 dB Min (60.1-80MHz)

● Cross Talk: -35 dB Min (0.5-40MHz)； -33+20*log(f/50) dB Min (40.1-100MHz)

● CMRR (0.5-100MHz): -30 dB Min

● HI-POT : 1500 Vrms

● Designed To Meet IEEE  802.3u & ANSI X 3.263  Standards.
