RJ45+Transformer 10G, 1*1, Tab Up, Shield, LED(G), P/N:RCUA-DH14-4001

Product model: RCUA-DH14-4001

● Port Matrix Configuration1*1

● Contact Rating:1A/48V~

● Shielding:Yes

● LED Color (Top Left) :Green

● Termination Method to PCB: PIP

● Transmission rate:10G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Yellow(114C) or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component



PRODUCT SPECIFICATIONS

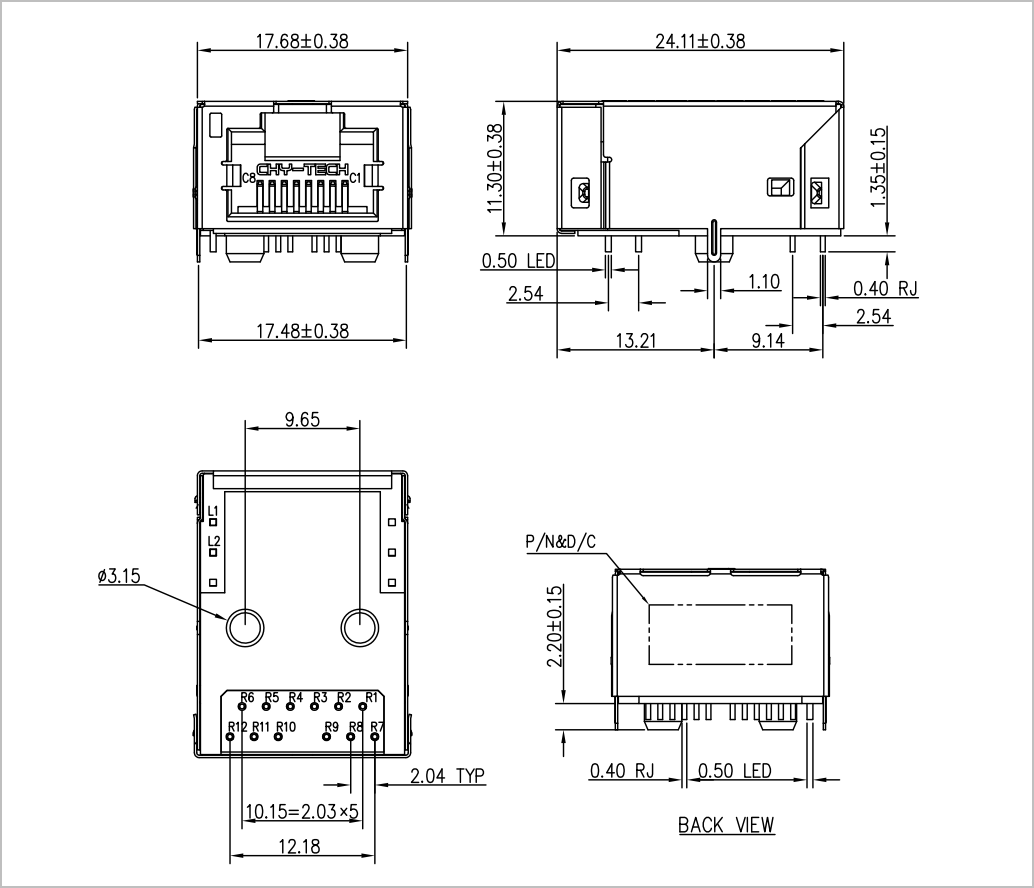

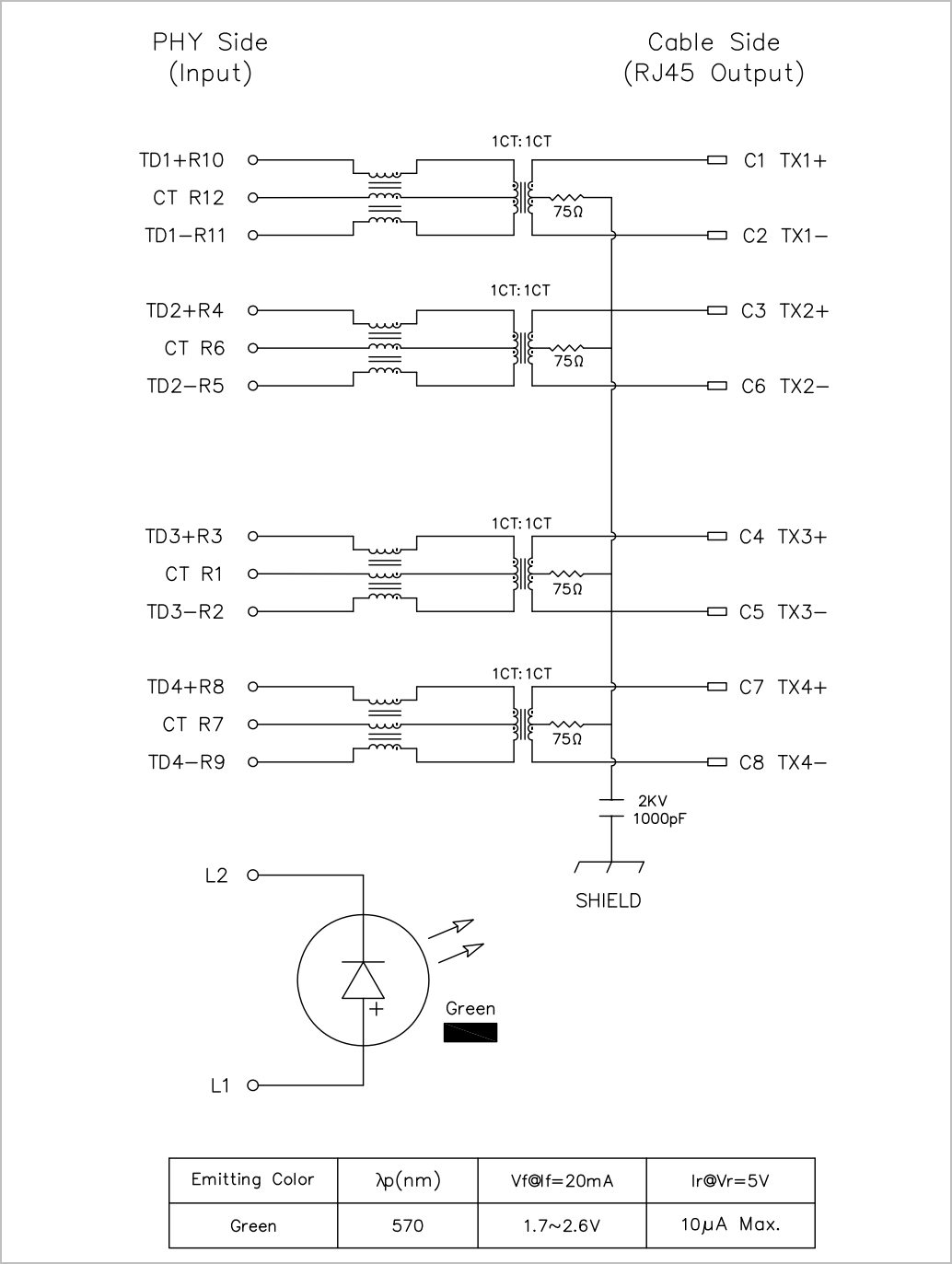

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
